3D Printed Lures

Bought my son a 3D printer for his birthday and I can't believe how good this bit of kit is. He's keen to start making his own lures for salmon season with it so has anyone given 3D printed lures a crack and can offer advice on the hook/line attachment points? I was even thinking of knocking up some soft plastic molds

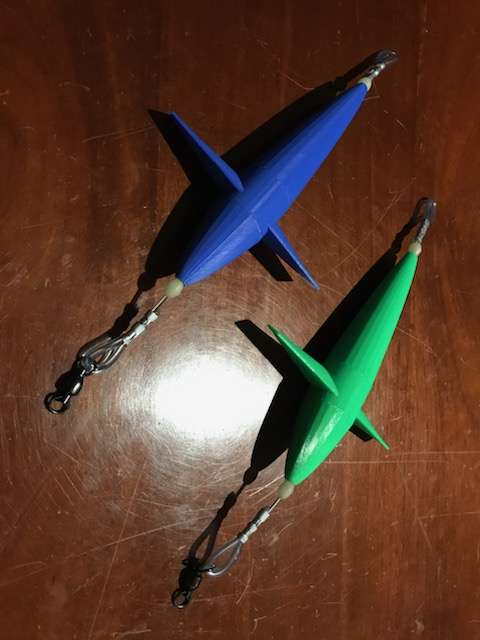

I've posted up some examples below for Scano who sent me pics of some examples he's knocked up.

____________________________________________________________________________

If catching wrasse is cool, consider me Miles Davis

Image Upload:

timboon's picture

Posts: 2651

Date Joined: 14/11/10

 Which one you buy Jack? I

Mon, 2021-03-01 15:52

 Which one you buy Jack?



I can think of so many uses....



I wonder how long it will take for Freo to buy one and print some silverware.....

Jackfrost80's picture

Posts: 6941

Date Joined: 07/05/12

Got the Ender 3 with glass

Mon, 2021-03-01 16:40

Got the Ender 3 with glass bed for just shy of $300. He's right into tech, coding and and art so this was the perfect combination of all three and I just had to bite the bullet on the price as a one off big birthday spend.

____________________________________________________________________________

If catching wrasse is cool, consider me Miles Davis

sea-kem's picture

Posts: 13172

Date Joined: 30/11/09

 Scano on here was talking

Mon, 2021-03-01 17:19

 Scano on here was talking about 3D lure printing the other day, 40 hours to print one up lol.

____________________________________________________________________________

Love the West!

scano's picture

Posts: 1223

Date Joined: 31/05/07

You are right seakem

Mon, 2021-03-01 18:43

One did take me 40 hours to print, but it's the mother of all marlin teasers and it used near on 2kg's of plastic.
I make it with skits and all, for $40. An equivalent in size and looks in a shop will set you back $300 +.  It raises billfish that's for sure!!

____________________________________________________________________________





Jackfrost80's picture

Posts: 6941

Date Joined: 07/05/12

Nice Scanno, I was looking at

Mon, 2021-03-01 18:51

Nice Scanno, I was looking at teaser designs too. Do you still have the design file?

____________________________________________________________________________

If catching wrasse is cool, consider me Miles Davis

sea-kem's picture

Posts: 13172

Date Joined: 30/11/09

 Jesus, be good if you could

Mon, 2021-03-01 20:21

 Jesus, be good if you could post a pic of that

____________________________________________________________________________

Love the West!

little johnny's picture

Posts: 4366

Date Joined: 04/12/11

Jack

Mon, 2021-03-01 18:16

I will give you some duos that don’t work ( colours) and show you what does work . New colours shit old school spot on

scano's picture

Posts: 1223

Date Joined: 31/05/07

Hey Jack Frost

Mon, 2021-03-01 18:50

Send me a pm with you number, and I'll sms you some pics lures I have made.
I've  made heaps of good stickbaits, swim baits, Marin pusher heads, poppers.
Ran a couple of the home made marlin lures in exy last year and had 3 hits on them, so they work no dramas.

look up a site called thingiverse, they have heaps of free lure designs you can use.
just type in fishing lure in the search field and there will be plenty that come up. I even printed a stencil to spray paint scales on the side of the lures.
3D printers are really good for old school and hard to get car bits too. Things like sunvisor clips, console parts, badges etc etc.

____________________________________________________________________________





Posts: 784

Date Joined: 19/06/14

Share the love.

Tue, 2021-03-02 04:10

Chuck your piccies up I'd love to see what you've been printing up. Well done for having a go and making your own.

____________________________________________________________________________

 My wife understands why I clean my rods n reels in the shower....



timboon's picture

Posts: 2651

Date Joined: 14/11/10

 Scano what model have you

Mon, 2021-03-01 21:14

 Scano what model have you got?



How exactly do they work?



Do you have to plug a laptop in etc?

Jackfrost80's picture

Posts: 6941

Date Joined: 07/05/12

Have a look up Boon. I needed

Mon, 2021-03-01 22:17

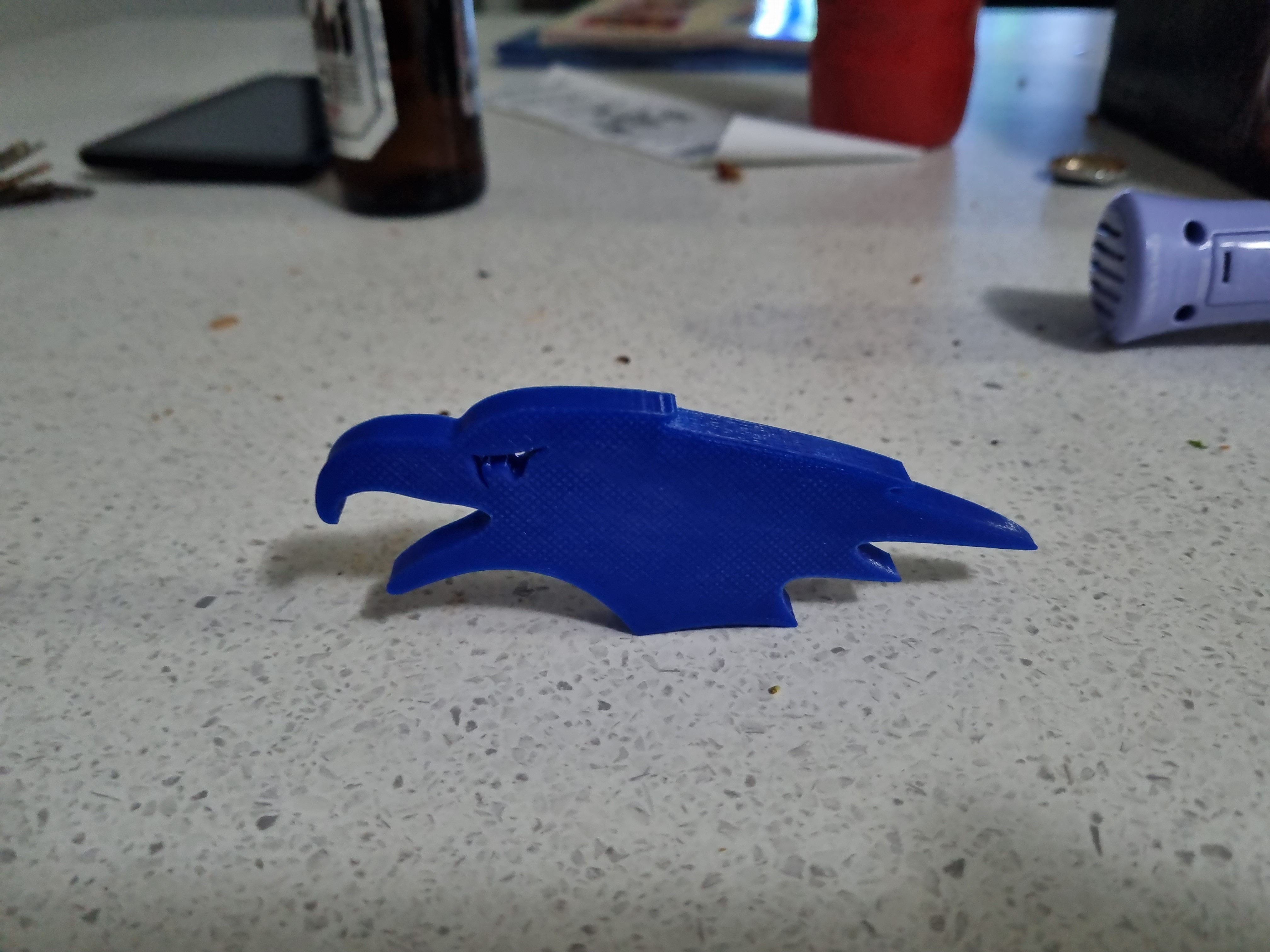

Have a look up Boon. I needed a bottle opener tonight so just printed up a beauty

____________________________________________________________________________

If catching wrasse is cool, consider me Miles Davis

scano's picture

Posts: 1223

Date Joined: 31/05/07

Hey timboon

Tue, 2021-03-02 20:35

 I have an anycubic i3 mega. Their about $350 delivered to your door off eBay. You have to use a software tool called Cura in order to get the gold from an STL to what they call a g code. Once you have done 1 or 2 it is easy as pie to make as many lures are you want. You need a laptop to scale the size of the lure you want to make, but again there's plenty of YouTube info to help get you started.

easiest way I found was to save whatever you want to print to an SD card. Then you can hit "print" on whatever you want when to leave home in the morning, then when you come home from work it should be all done and sitting there waiting for you to rip off the printer.


As I said, awesome for making teasers (trolling bird teasers) and even knife sheaths and stuff like that. Good if you have kids too because they will learn how to use them throughout their time at school as well.

____________________________________________________________________________





BigJevans's picture

Posts: 60

Date Joined: 07/09/18

Yep

Tue, 2021-03-02 06:54

 I made some a couple of years ago and shared my info when Scano asked about them too, the shapes and designs you can come up with are limitless but I found they are a bit unreliable to use as a stickbait or lure to be stuck by a fish.

Where the printer stops and starts a new layer (a growth line) the model is actually pretty weak. I shock tested a couple in the backyard with some weights and they almost always completely shear off at a growth line.

I had planned on redesigning some to have an internal wire trace to take the impact of a strike rather than the body of the lure..... but it ended up in the too hard basket :P

Will try and post a picture of one I made.

I think Scano is on the money making teasers though, just wouldnt be too confident on the printed lure body taking the strike of a fish.

Cheers, Jase.

BigJevans's picture

Posts: 60

Date Joined: 07/09/18

link

Tue, 2021-03-02 06:57
NORUN NOFUN's picture

Posts: 689

Date Joined: 15/08/11

Hey big jevans, have you seen

Tue, 2021-03-02 14:11

Hey big jevans, have you seen printed lures that are done in half pieces ? full wire dropped in and then the two half bodies glued together. It is endless on the designs you can come up, rattle chambers, bib slots etc. The tech has come along way.

BigJevans's picture

Posts: 60

Date Joined: 07/09/18

have seen

Wed, 2021-03-03 06:16

 Yeah I've seen them, like mentioned above the "thingiverse" has a lot of models on it, I didnt dive too deep into different options, had a play and gave up haha

scano's picture

Posts: 1223

Date Joined: 31/05/07

I sent some pics of the stuff I made

Tue, 2021-03-02 20:25

 To Jack Frost today. Hopefully he can post some up for me. I'm garbage at posting pics on Fishwrecked nowadays.

____________________________________________________________________________





Jackfrost80's picture

Posts: 6941

Date Joined: 07/05/12

Posted above mate

Tue, 2021-03-02 22:06

Posted above mate

____________________________________________________________________________

If catching wrasse is cool, consider me Miles Davis

scano's picture

Posts: 1223

Date Joined: 31/05/07

And yes

Tue, 2021-03-02 20:26

Have made some of the wire through 2 part glue together lures, came up great.
there's also a couple of marlin lures you can pause the printing mid way through and then add a descent size ball sinker in the head of it. They work great in close to the transom or in rough seas

____________________________________________________________________________





Tim's picture

Posts: 2441

Date Joined: 26/09/06

Pause

Tue, 2021-03-02 20:59

Hey Scano can you program a pause into the design or is that part manual?

scano's picture

Posts: 1223

Date Joined: 31/05/07

From what I have experienced

Tue, 2021-03-02 23:41

That part is manual. I mean I'm sure there are those that are more tech savvy than me which could get it to pause mid way automatically, but I did it manually.

____________________________________________________________________________





timboon's picture

Posts: 2651

Date Joined: 14/11/10

 Jack.... Does that stubby

Tue, 2021-03-02 21:01

 Jack.... Does that stubby opener open full strength mens piss or just low carb chics piss??





scano's picture

Posts: 1223

Date Joined: 31/05/07

Definitely

Tue, 2021-03-02 23:39

 The low carb chicks piss. I say that because it's an eagles one and I'm a pies supporter

____________________________________________________________________________





Jackfrost80's picture

Posts: 6941

Date Joined: 07/05/12

I'd print you up a Pies one

Wed, 2021-03-03 07:24

I'd print you up a Pies one but apparently they fall apart after the first quarter of a carton

____________________________________________________________________________

If catching wrasse is cool, consider me Miles Davis

sea-kem's picture

Posts: 13172

Date Joined: 30/11/09

 A two pot screamer opener

Wed, 2021-03-03 08:43

 A two pot screamer opener

____________________________________________________________________________

Love the West!

davewillo's picture

Posts: 703

Date Joined: 08/09/16

 Some cool stuff there Scano

Wed, 2021-03-03 14:36

 Some cool stuff there Scano and Frosty!
