HDI-7 colour palette--pics added
Submitted by ranmar850 on Thu, 2016-02-04 17:08

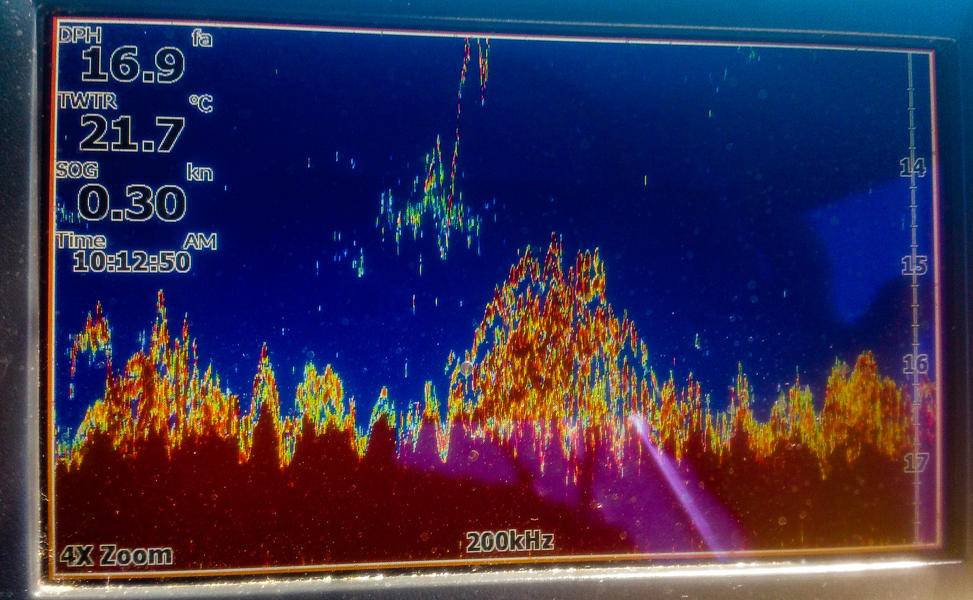

This is my HDI -7 with the background set to Blue Fishreveal. Different to just the blue background available in the selection. Gives a rather Furuno-like picture, sample shown is with 58% of colour intensity selected. Not a good picture to show the tails, as it is zoomed x4 and auto-depth, but they are quite good. They show well on x2 zoom. Fish shown produced several jew. The little zig zag up the top is probably my jig. Transducer is a 50/200 HST-DFSBL.
Image Upload:
sea-kem
Posts: 14853
Date Joined: 30/11/09
That's a sexy pic.
That's a sexy pic.
Love the West!
lame
Posts: 315
Date Joined: 20/01/10
nice
Picture that
JohnF
Posts: 2836
Date Joined: 07/07/10
A nice Lowrance picture at
A nice Lowrance picture at last!
Boston Whaler 235 Conquest......getting the flogging it was built for.
sandbar
Posts: 704
Date Joined: 25/10/09
Yeah that is a nice picture
I have never used fish reveal... well thats about to change!
Nice dhues aswell, spewin about the taxman. Bronzy?
ranmar850
Posts: 2702
Date Joined: 12/08/12
Probaly, didn't get to see it
There have been bronzies, spinners and big thickskins around up there lately, I've hooked all three on heavy gear and had my arms stretched. F**s. Endangered my arse. Anyway, the one I got whole spewed up scalies, there was a big school in the area.
The Blue Fishreveal is a whole different look, different to the blue background option, best picture I've had out of it. Went out to 22 fathoms, still showing a good pic. That transducer is meant to be chirp, according to the Lowrance website, but selecting it from the setup menu removes the downscan option.
Jim
Posts: 1321
Date Joined: 05/05/06
I have the same sounder and
I have the same sounder and use the same colour. Only used it to look like furuno haha.
Nice shot.
Bend over
Jayden20
Posts: 672
Date Joined: 29/08/11
Thats a good reading from a
Thats a good reading from a hdi!
froos
Posts: 19
Date Joined: 21/11/15
Screen shot
I have the same sounder with the 83/200 transducer, can you explain how to get a full screen shot at 4x, i can only get a split screen showing 4x.
Also how d you show the time on screen & temp on screen ?
ranmar850
Posts: 2702
Date Joined: 12/08/12
Pages button

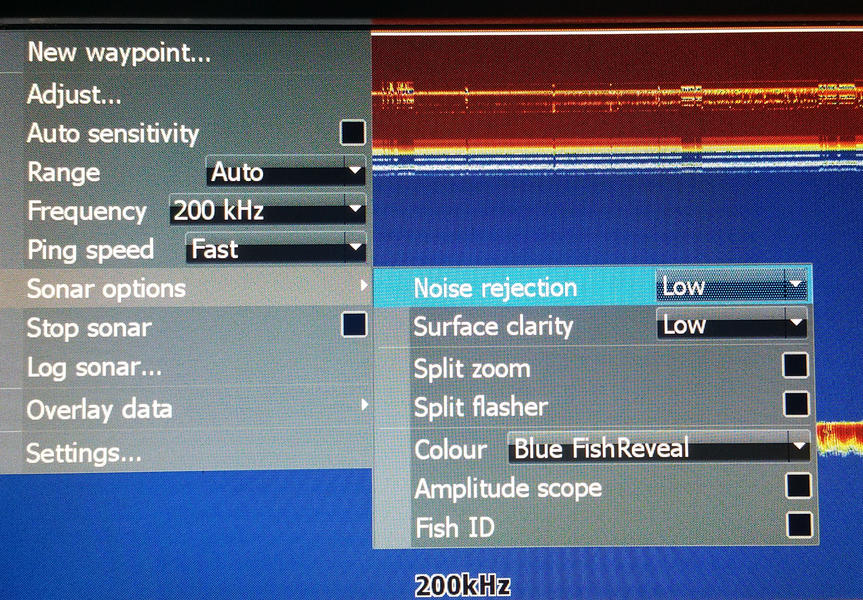

it should be available then as a single screen--if you don't have the Split Zoom box ticked in the sounder menu? The data shown is under the Overlay Data section of the menu, different options available for the amount you want to display.

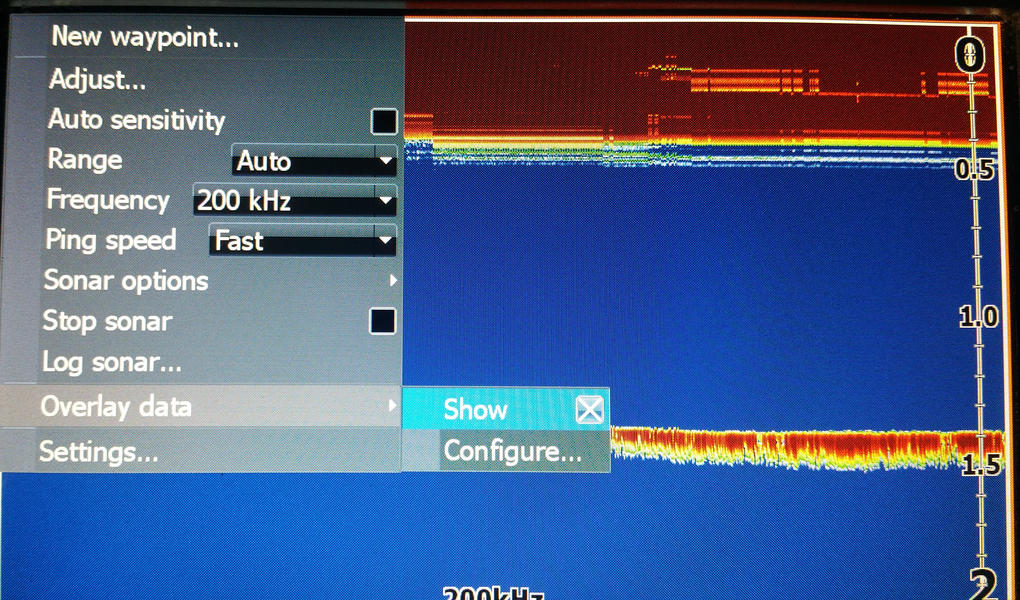

Edit pics added --shows menu options to get single zoom screen and Overlay Data-go into Configure and you can choose what you want there, and how big.
lame
Posts: 315
Date Joined: 20/01/10
update
Cheers for showing those who asked , just a heads up if your turning the unit on , on dry land unplug the transducer I think they don't recommend having them on dry or its the rebound waves off the concrete or something not good for them
ranmar850
Posts: 2702
Date Joined: 12/08/12
Running a xducer dry can cause overheating.
This is the only real issue, i don't do it any more than necessary. Running some electronics transmitters without their load attached can be worse, you will fry them. Not saying this is the case with echo sounders, just a heads up.
lame
Posts: 315
Date Joined: 20/01/10
Haha cheers
Haha cheers
froos
Posts: 19
Date Joined: 21/11/15
Screen shot
Thanks, sat on the boat this morning & reconfigured, all is good.
