1kw transducer mounting placement

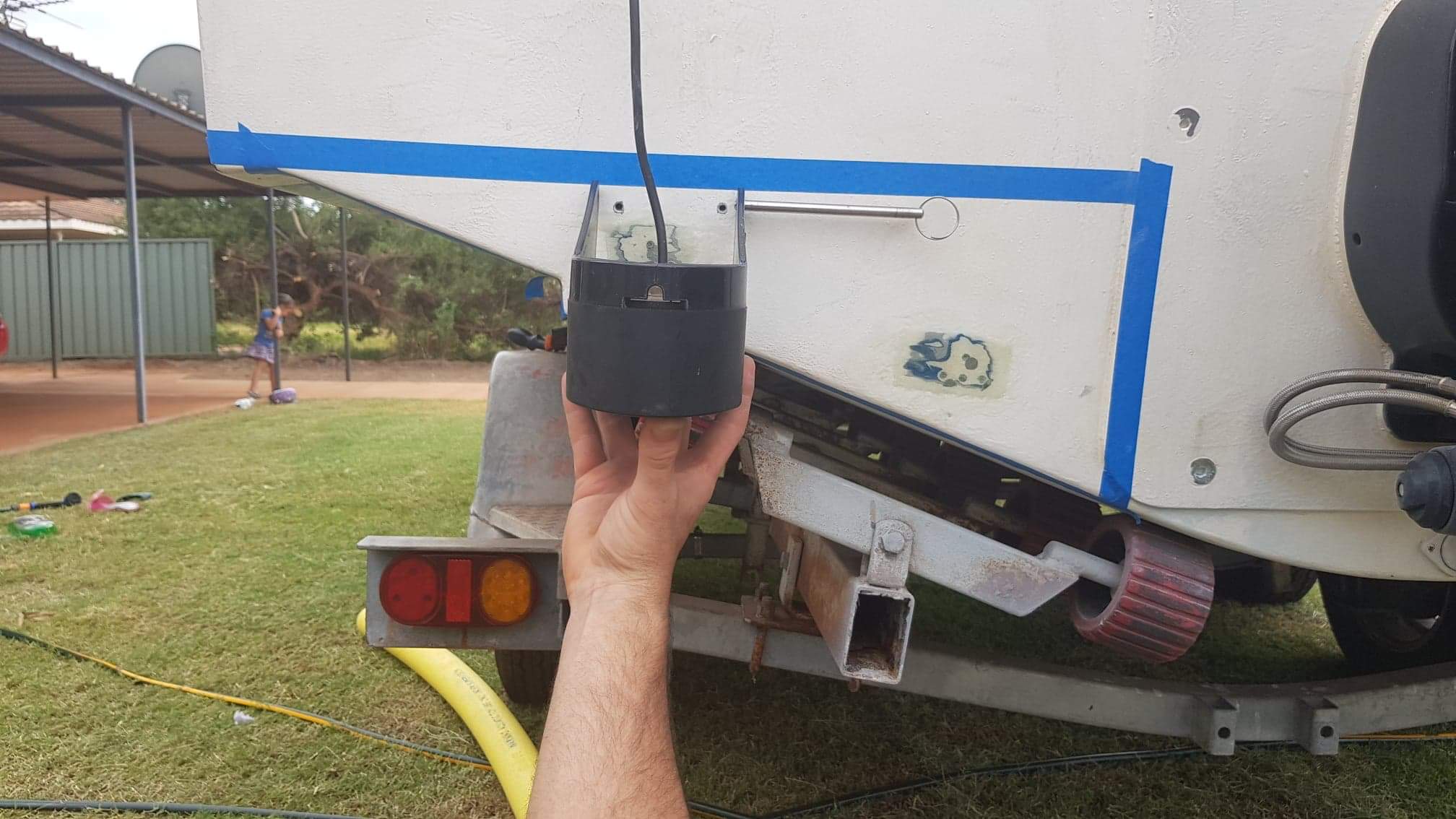

 Hi all where would you suggest is the best mounting position for a 1kw transducer on my boat is it ok in the position shown in pic or is there a better spot for it.

Many thanks

Rod

Image Upload:

Posts: 19

Date Joined: 15/05/13

Closer your engine, for sure

Mon, 2020-04-27 14:03

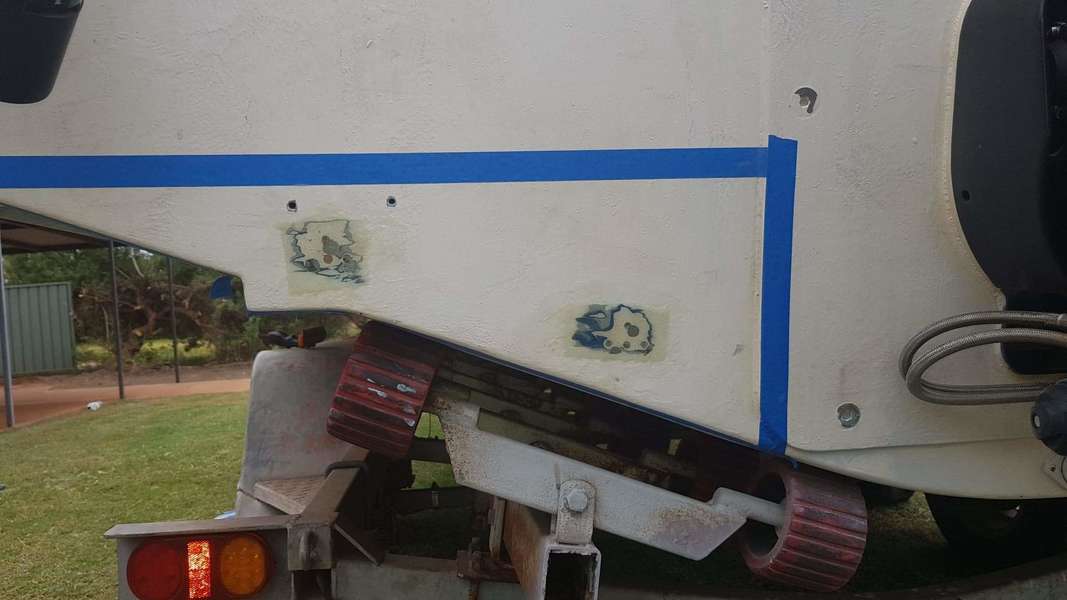

Closer your engine, for sure i would be placing right next to the vertical tape.

roddo's picture

Posts: 469

Date Joined: 16/10/09

 There is a rib running

Mon, 2020-04-27 14:14

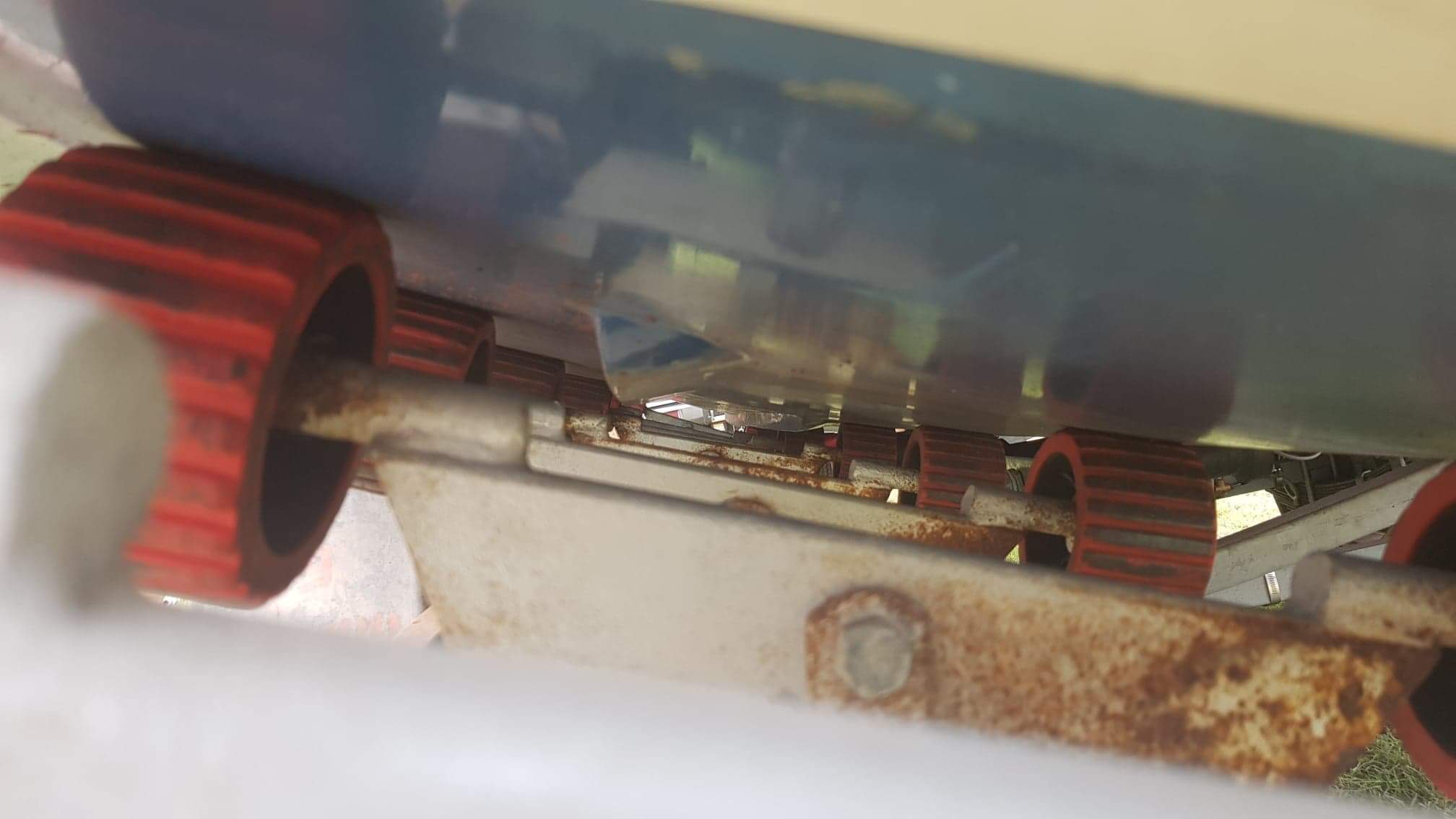

 There is a rib running inline with the vertical tape like in the 2nd pic it stops about 1.5m from the transom and the one in the pic stops about .5m from the transom

Stevo81's picture

Posts: 1278

Date Joined: 16/04/12

 I be would be going

Mon, 2020-04-27 15:52

 I be would be going inbetween those strakes but on the starboard side if standard rotation prop. You want to be on the props downward swinging side

____________________________________________________________________________

                                   ••••••••  Electrical Contractor NOR  ••••••••

roddo's picture

Posts: 469

Date Joined: 16/10/09

 I have duo props so wont

Mon, 2020-04-27 16:01

 I have duo props so wont matter on what side as far as I'm aware and it would prob get damaged on the starboard side getting in out of the boat on the ladder.

What advantage would there be in going between the strakes to where I have it in the pic just trying to understand  is it better lower in the water?

Posts: 2925

Date Joined: 27/12/06

ribs

Mon, 2020-04-27 17:26

Where your holding it will be turbulent with the flat spot in the hull. Go in between those ribs and drop it low, usually there will be rooster tail from the larger trannies see how your reading goes and if requiredyou can make or buy a spray deflector to suit

Alpha's picture

Posts: 172

Date Joined: 13/02/17

Agree with Rig

Mon, 2020-04-27 19:49

 and I'll add the further out to the edge you go your sounder gets affected by when your drifting and the boat rocks you'll  get bubbles under it as it may come out off the water and when you turn in your case to starboard the tranny comes maybe not out off the water totally but closer too the edge and it will again affect the reading. Go in between those ribs.

roddo's picture

Posts: 469

Date Joined: 16/10/09

 Great thanks for the

Mon, 2020-04-27 20:12

 Great thanks for the feedback

Posts: 43

Date Joined: 11/12/11

When out next

Tue, 2020-04-28 15:11

When you go out next sit on the plaining speed and see where the clear water is out the back of boat. Should be able to see where it is clear and where the white wash is. I suspect will be closer to the leg will be the cleanest water. Next is angle, need to get angle placement right, Airmar have a good installation guide, follow it and you shouldnt have any issue.
